Network Delay

Package: nesg.netattacks.simulations.AttackScenarios.DelayAttackScenario
File: simulations/AttackScenarios/DelayAttackScenario/Delay.ned

(no description)

NA_AdhocHost NA_AttackerAdhocHost IPv4NetworkConfigurator ChannelControl

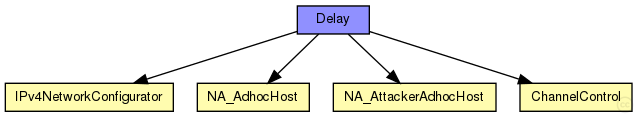

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Parameters:

Name Type Default value Description
numHosts int
numDelayers int
numFlows int

Properties:

Name Value Description
isNetwork
display bgb=1000,1000,grey75

Unassigned submodule parameters:

Name Type Default value Description
node.networkLayer.ip.procDelay double 0s
node.networkLayer.ip.timeToLive int 32
node.networkLayer.ip.multicastTimeToLive int 32
node.networkLayer.ip.fragmentTimeout double 60s
node.networkLayer.ip.forceBroadcast bool false
node.networkLayer.arp.retryTimeout double 1s

number seconds ARP waits between retries to resolve an IPv4 address
node.networkLayer.arp.retryCount int 3

number of times ARP will attempt to resolve an IPv4 address
node.networkLayer.arp.cacheTimeout double 120s

number seconds unused entries in the cache will time out
node.networkLayer.arp.globalARP bool false
node.routingTable.routerId string "auto"

for routers, the router id using IPv4 address dotted notation; specify "auto" to select the highest interface address; should be left empty ("") for hosts
node.routingTable.forwardMulticast bool false

turns multicast forwarding on/off
node.interfaceTable.displayAddresses bool true

whether to display IP addresses on links
node.pcapRecorder.verbose bool false

whether to log packets on the module output
node.pcapRecorder.pcapFile string ""

the PCAP file to be written
node.pcapRecorder.snaplen int 65535

maximum number of bytes to record per packet
node.pcapRecorder.dumpBadFrames bool true

enable dump of frames with hasBitError
node.pcapRecorder.moduleNamePatterns string "wlan[*] eth[*] ppp[*] ext[*]"

space-separated list of sibling module names to listen on
node.pcapRecorder.sendingSignalNames string "packetSentToLower"

space-separated list of outbound packet signals to subscribe to
node.pcapRecorder.receivingSignalNames string "packetReceivedFromLower"

space-separated list of inbound packet signals to subscribe to
attacker.networkLayer.ip.procDelay double 0s
attacker.networkLayer.ip.timeToLive int 32
attacker.networkLayer.ip.multicastTimeToLive int 32
attacker.networkLayer.ip.fragmentTimeout double 60s
attacker.networkLayer.ip.forceBroadcast bool false
attacker.networkLayer.arp.retryTimeout double 1s

number seconds ARP waits between retries to resolve an IPv4 address
attacker.networkLayer.arp.retryCount int 3

number of times ARP will attempt to resolve an IPv4 address
attacker.networkLayer.arp.cacheTimeout double 120s

number seconds unused entries in the cache will time out
attacker.networkLayer.arp.globalARP bool false
attacker.routingTable.routerId string "auto"

for routers, the router id using IPv4 address dotted notation; specify "auto" to select the highest interface address; should be left empty ("") for hosts
attacker.routingTable.forwardMulticast bool false

turns multicast forwarding on/off
attacker.interfaceTable.displayAddresses bool true

whether to display IP addresses on links
attacker.pcapRecorder.verbose bool false

whether to log packets on the module output
attacker.pcapRecorder.pcapFile string ""

the PCAP file to be written
attacker.pcapRecorder.snaplen int 65535

maximum number of bytes to record per packet
attacker.pcapRecorder.dumpBadFrames bool true

enable dump of frames with hasBitError
attacker.pcapRecorder.moduleNamePatterns string "wlan[*] eth[*] ppp[*] ext[*]"

space-separated list of sibling module names to listen on
attacker.pcapRecorder.sendingSignalNames string "packetSentToLower"

space-separated list of outbound packet signals to subscribe to
attacker.pcapRecorder.receivingSignalNames string "packetReceivedFromLower"

space-separated list of inbound packet signals to subscribe to
attacker.droppingAttack.active bool false

Indicates if this attack is active or not in the node
attacker.droppingAttack.startTime double 0s

Timestamp to start the attack
attacker.droppingAttack.endTime double 0s

Time instant at which the attack ends, 0 means that the attack will not end during the simulation.
attacker.droppingAttack.droppingAttackProbability double 0

Probability of dropping a packet. Range [0,1].
attacker.delayAttack.active bool false

Indicates if this attack is active or not in the node
attacker.delayAttack.startTime double 0s

Timestamp to start the attack
attacker.delayAttack.endTime double 0s

Time instant at which the attack ends, 0 means that the attack will not end during the simulation.
attacker.delayAttack.delayAttackProbability double 0

Probability of delaying a packet. Range [0,1].
attacker.delayAttack.delayAttackValue double normal(1s, 0.1s)

Random delay time
attacker.sinkholeAttack.active bool false

Indicates if this attack is active or not in the node
attacker.sinkholeAttack.startTime double 0s

Timestamp to start the attack
attacker.sinkholeAttack.endTime double 0s

Time instant at which the attack ends, 0 means that the attack will not end during the simulation.
attacker.sinkholeAttack.sinkholeAttackProbability double 0

Probability of answering a RREQ message with a fake route. Range [0,1].
attacker.sinkholeAttack.sinkOnlyWhenRouteInTable bool false

TRUE: Send fake answers to RREQ messages only when requested routes are really in routing table of sinkhole node. FALSE: Send fake answers for any RREQ messages arriving at the sinkhole node.
attacker.sinkholeAttack.seqnoAdded double uniform(20, 30)

Fake sequence number generated.
attacker.sinkholeAttack.numHops int 1

Fake number of hops.
configurator.config xml xml("")

XML configuration parameters for IP address assignment and adding manual routes
configurator.assignAddresses bool true

assign IP addresses to all interfaces in the network
configurator.assignDisjunctSubnetAddresses bool true

avoid using the same address prefix and netmask on different links when assigning IP addresses to interfaces
configurator.addStaticRoutes bool true

add static routes to the routing tables of all nodes to route to all destination interfaces (only where applicable; turn off when config file contains manual routes)
configurator.addDefaultRoutes bool true

add default routes if all routes from a source node go through the same gateway (used only if addStaticRoutes is true)
configurator.addSubnetRoutes bool true

add subnet routes instead of destination interface routes (only where applicable; used only if addStaticRoutes is true)
configurator.optimizeRoutes bool true

optimize routing tables by merging routes, the resulting routing table might route more packets than the original (used only if addStaticRoutes is true)
configurator.dumpTopology bool false

print extracted network topology to the module output
configurator.dumpAddresses bool false

print assigned IP addresses for all interfaces to the module output
configurator.dumpRoutes bool false

print configured and optimized routing tables for all nodes to the module output
configurator.dumpConfig string ""

write configuration into the given config file that can be fed back to speed up subsequent runs (network configurations)
channelControl.coreDebug bool false

debug switch for core framework
channelControl.pMax double 20mW

maximum sending power used for this network (in mW)
channelControl.sat double -110dBm

signal attenuation threshold (in dBm)
channelControl.alpha double 2

path loss coefficient
channelControl.carrierFrequency double 2.4GHz

base carrier frequency of all the channels (in Hz)
channelControl.numChannels int 1

number of radio channels (frequencies)
channelControl.propagationModel string "FreeSpaceModel"

Source code:

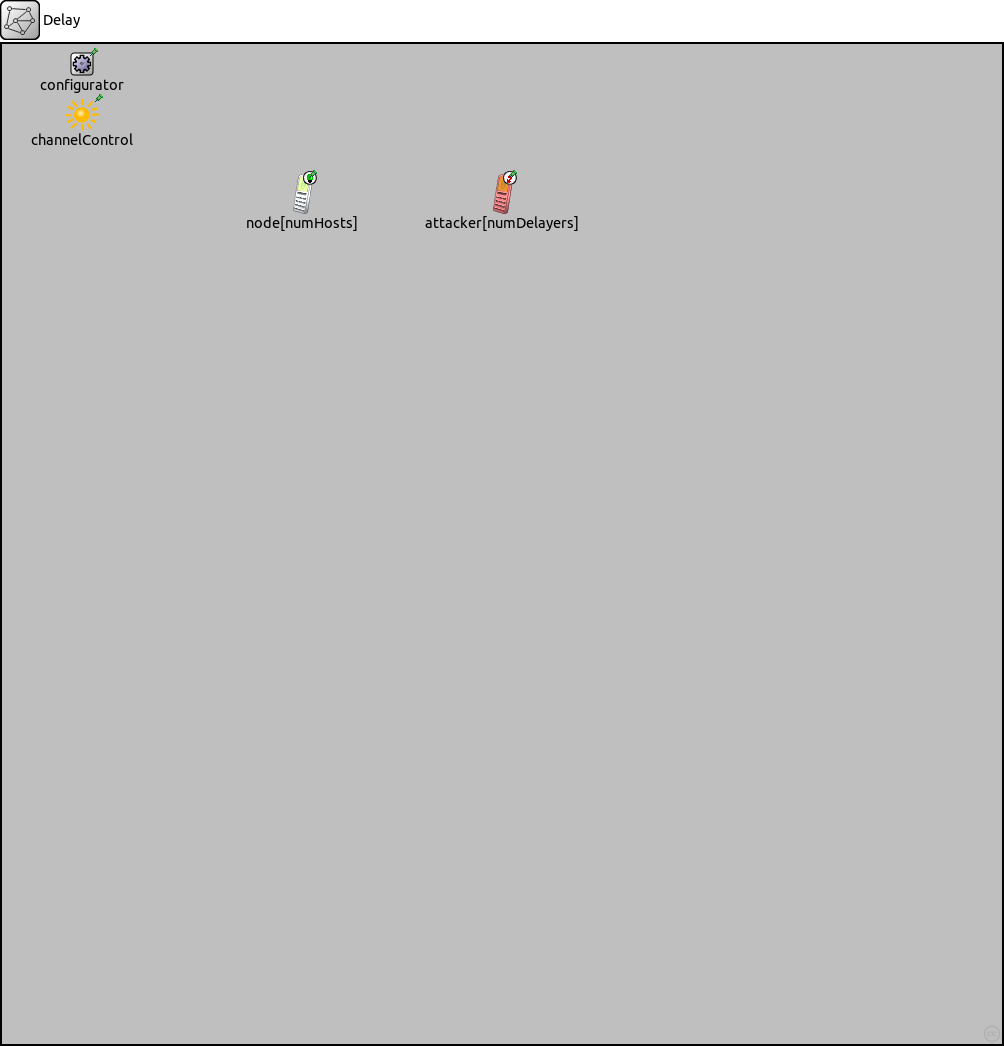

network Delay
{
    parameters:
        int numHosts;
        int numDelayers;
        int numFlows;
        @display("bgb=1000,1000,grey75");
    submodules:
        node[numHosts]: NA_AdhocHost {
            @display("p=300,150");
        }
        attacker[numDelayers]: NA_AttackerAdhocHost {
            @display("p=500,150");
        }
        configurator: IPv4NetworkConfigurator {
            @display("p=80,20");
        }
        channelControl: ChannelControl {
            @display("p=80,70;i=misc/sun");
        }
}
