Simple Module NA_DroppingAttack

Package: nesg.netattacks.attacks.controllers.droppingAttack
File: src/attacks/controllers/droppingAttack/NA_DroppingAttack.ned

C++ definition

Dropping attack controller simple module. One parameter controls the attack behavior: the attack probability.

See also: NA_Attack, NA_IPv4

Author: Gabriel Maciá Fernández, gmacia@ugr.es

Date: 01/22/2013

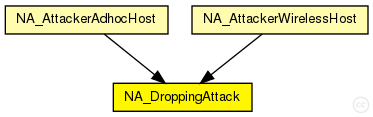

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Extends:

Name	Type	Description
NA_Attack	simple module	Base simple module inherited from all attacks modules. Is in charge of set the schedulling parameters, attack activation or not, and what is the type of the attack.

Used in compound modules:

Name	Type	Description
NA_AttackerAdhocHost	compound module	Attacker wireless ad hoc host. Modificated from WirelessHost module. Redefined from INET framework and used as attacker host.
NA_AttackerWirelessHost	compound module	Attacker wireless host. Modificated from WirelessHost module. Redefined from INET framework and used as attacker host.

Parameters:

Name	Type	Default value	Description
attackType	string	"dropping"	String with the type of attack
active	bool	false	Indicates if this attack is active or not in the node
startTime	double	0s	Timestamp to start the attack
endTime	double	0s	Time instant at which the attack ends, 0 means that the attack will not end during the simulation.
droppingAttackProbability	double	0	Probability of dropping a packet. Range [0,1].

Properties:

Name	Value	Description
display	i=misc/cloud3,red,100;is=l
class	NA_DroppingAttack

Source code:

//
// Dropping attack controller simple module. One parameter controls the attack behavior:
// the attack probability.
//
// @see NA_Attack, NA_IPv4
//
// @author Gabriel Maciá Fernández, gmacia@ugr.es
// @date 01/22/2013
simple NA_DroppingAttack extends NA_Attack
{
    parameters:
        @class(NA_DroppingAttack);
        @display("i=misc/cloud3,red,100;is=l");

        attackType = "dropping"; //Should correspond with the tag located in the hackedModules.ned. e.g. @dropping for this attack.
        double droppingAttackProbability = default(0); //Probability of dropping a packet. Range [0,1].
}
