Simple Module NA_Attack

Package: nesg.netattacks.attacks.controllers
File: src/attacks/controllers/NA_Attack.ned

Base simple module inherited from all attacks modules. Is in charge of set the schedulling parameters, attack activation or not, and what is the type of the attack.

Author: Gabriel Maciá Fernández, gmacia@ugr.es

Date: 01/22/2013

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

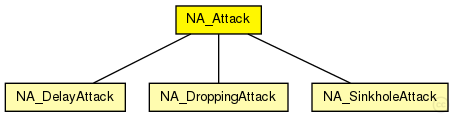

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Known subclasses:

Name	Type	Description
NA_DelayAttack	simple module	Delay attack controller simple module. Two parameters control the attack behavior: the attack probability and the delay time.
NA_DroppingAttack	simple module	Dropping attack controller simple module. One parameter controls the attack behavior: the attack probability.
NA_SinkholeAttack	simple module	Sinkhole attack controller simple module. Three parameter controls the attack behavior: the attack probability, if the route requested is knowed by the attacker or not and the the sequence number generated.

Parameters:

Name	Type	Default value	Description
attackType	string	""	String with the type of attack
active	bool	false	Indicates if this attack is active or not in the node
startTime	double	0s	Timestamp to start the attack
endTime	double	0s	Time instant at which the attack ends, 0 means that the attack will not end during the simulation.

Properties:

Name	Value	Description
display	i=misc/cloud3,red,100;is=l

Source code:

//
// Base simple module inherited from all attacks modules.
// Is in charge of set the schedulling parameters, attack activation or not, and what
// is the type of the attack.
//
// @author Gabriel Maciá Fernández, gmacia@ugr.es
// @date 01/22/2013
simple NA_Attack
{
    parameters:
        @display("i=misc/cloud3,red,100;is=l");
        string attackType @enum("dropping","sinkhole","delay") = default("");  //String with the type of attack
        bool active = default(false);  //Indicates if this attack is active or not in the node
        double startTime @unit("s") = default(0s); // Timestamp to start the attack
        double endTime @unit("s") = default(0s); //Time instant at which the attack ends, 0 means that the attack will not end during the simulation.
}
