Compound Module NA_AttackerAdhocHost

Attacker wireless ad hoc host. Modificated from WirelessHost module. Redefined from INET framework and used as attacker host.

To implement an attack you must include the corresponding attack controller module in the attacker host.

This attack could be include N attacks controllers to implement several simultaneous attacks. The current attack controllers included are:

• NA_DroppingAttack (dropping attack controller)
• NA_DelayAttack (dropping attack controller)
• NA_SinkholeAttack (dropping attack controller)

See also: AdhocHost, WirelessHost, NA_DroppingAttack, NA_DelayAttack, NA_SinkholeAttack

Author: Gabriel Maciá Fernández, gmacia@ugr.es

Date: 01/22/2013

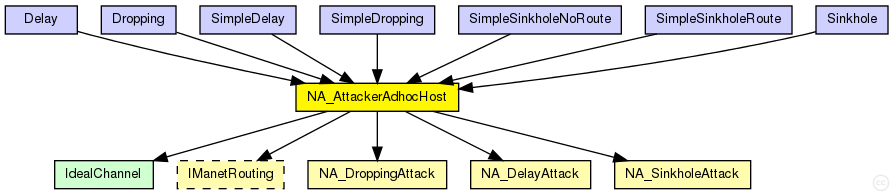

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Extends:

Networks:

Parameters:

Properties:

Gates:

Unassigned submodule parameters:

Source code:

//
// Attacker wireless ad hoc host. Modificated from WirelessHost module.
// Redefined from INET framework and used as attacker host.
//
// To implement an attack you must include the corresponding attack controller module in the attacker host.
//
// This attack could be include N attacks controllers to implement several simultaneous attacks.
// The current attack controllers included are:
// - NA_DroppingAttack (dropping attack controller)
// - NA_DelayAttack (dropping attack controller)
// - NA_SinkholeAttack (dropping attack controller)
//
// @see AdhocHost, WirelessHost, NA_DroppingAttack, NA_DelayAttack, NA_SinkholeAttack
//
// @author Gabriel Maciá Fernández, gmacia@ugr.es
// @date 01/22/2013
module NA_AttackerAdhocHost extends NA_WirelessHost
{
    parameters:
        @display("i=device/cellphone,red;bgb=803,448;i2=status/lightning");
        wlan[*].mgmtType = default("Ieee80211MgmtAdhoc");  // use adhoc management
        string routingProtocol @enum("AODVUU","DYMOUM","DYMO","DSRUU","OLSR","OLSR_ETX","DSDV_2","Batman") = default("AODVUU");
        IPForward = default(true);

    submodules:
        manetrouting: <routingProtocol> like IManetRouting if routingProtocol != "" {
            @display("p=522,307");
        }
        //# Include dropping attack controller
        droppingAttack: NA_DroppingAttack {
            @display("p=708,46");
        }
        //# Include delay attack controller
        delayAttack: NA_DelayAttack {
            @display("p=708,126");
        }
        //# Include sinkhole attack controller
        sinkholeAttack: NA_SinkholeAttack {
            @display("p=708,205");
        }
    connections:
        networkLayer.manetOut --> manetrouting.from_ip if routingProtocol != "";
        networkLayer.manetIn <-- manetrouting.to_ip if routingProtocol != "";

}
