Compound Module NA_AdhocHost

Package: nesg.netattacks.nodes
File: src/nodes/NA_AdhocHost.ned

Wireless ad hoc host. Modificated from WirelessHost module. Redefined from INET framework and used as normal host.

It is used as a simple AdhocHost like in INET framework. These hosts never behaves as attacker host. The only differente regards AdhocHost is that in this case they are using the MA framework arquitecture.

See also: AdhocHost, WirelessHost

Author: Gabriel Maciá Fernández, gmacia@ugr.es

Date: 01/22/2013

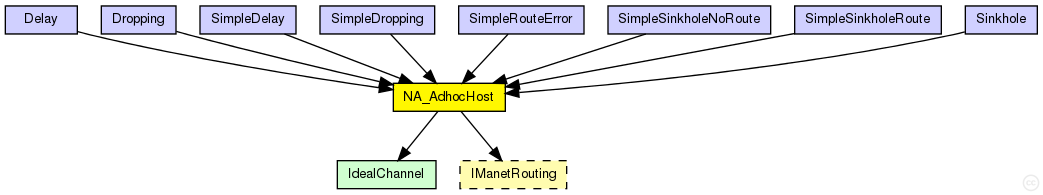

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Extends:

Name	Type	Description
NA_WirelessHost	compound module	Generic wireless host. Modificated from WirelessHost module. Migrated from INET for inheritance requirements of NA_AttackerAdhocHost and NA_AttackerWirelessHost

Networks:

Name	Type	Description
Delay	network	(no description)
Dropping	network	(no description)
SimpleDelay	network	(no description)
SimpleDropping	network	(no description)
SimpleRouteError	network	(no description)
SimpleSinkholeNoRoute	network	(no description)
SimpleSinkholeRoute	network	(no description)
Sinkhole	network	(no description)

Parameters:

Name	Type	Default value	Description
numExtInterfaces	int	0
numRadios	int	1	the number of radios in the router. by default no wireless
numPcapRecorders	int	0	no of PcapRecorders.
mobilityType	string	"StationaryMobility"
routingFile	string	""
IPForward	bool	true
numTcpApps	int	0	no of TCP apps. Specify the app types in INI file with tcpApp[0..1].typename="TCPEchoApp" syntax
numUdpApps	int	0	no of UDP apps. Specify the app types in INI file with udpApp[0..1].typename="UDPVideoStreamCli" syntax
numSctpApps	int	0	no of SCTP apps. Specify the app types in INI file with sctpApp[0..1].typename="SCTPServer" syntax
numPingApps	int	0	no of PING apps. Specify the app types in INI file with pingApp[0..1].typename="PingApp" syntax
tcpType	string	firstAvailable("TCP", "TCP_lwIP", "TCP_NSC", "TCP_None")	tcp implementation (e.g. ~TCP, ~TCP_lwIP, ~TCP_NSC) or ~TCPSpoof
udpType	string	firstAvailable("UDP","UDP_None")
sctpType	string	firstAvailable("SCTP","SCTP_None")
routingProtocol	string	"AODVUU"

Properties:

Name	Value	Description
display	i=device/cellphone,white;bgb=803,448;i2=status/green
node
labels	node

Gates:

Name	Direction	Size
radioIn [ ]	input	numRadios
pppg [ ]	inout
ethg [ ]	inout

Unassigned submodule parameters:

Name	Type	Default value	Description
networkLayer.ip.procDelay	double	0s
networkLayer.ip.timeToLive	int	32
networkLayer.ip.multicastTimeToLive	int	32
networkLayer.ip.fragmentTimeout	double	60s
networkLayer.ip.forceBroadcast	bool	false
networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IPv4 address
networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IPv4 address
networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
networkLayer.arp.globalARP	bool	false
routingTable.routerId	string	"auto"	for routers, the router id using IPv4 address dotted notation; specify "auto" to select the highest interface address; should be left empty ("") for hosts
routingTable.forwardMulticast	bool	false	turns multicast forwarding on/off
interfaceTable.displayAddresses	bool	true	whether to display IP addresses on links
pcapRecorder.verbose	bool	false	whether to log packets on the module output
pcapRecorder.pcapFile	string	""	the PCAP file to be written
pcapRecorder.snaplen	int	65535	maximum number of bytes to record per packet
pcapRecorder.dumpBadFrames	bool	true	enable dump of frames with hasBitError
pcapRecorder.moduleNamePatterns	string	"wlan[] eth[] ppp[] ext[]"	space-separated list of sibling module names to listen on
pcapRecorder.sendingSignalNames	string	"packetSentToLower"	space-separated list of outbound packet signals to subscribe to
pcapRecorder.receivingSignalNames	string	"packetReceivedFromLower"	space-separated list of inbound packet signals to subscribe to

Source code:

//
// Wireless ad hoc host. Modificated from WirelessHost module.
// Redefined from INET framework and used as normal host.
//
// It is used as a simple AdhocHost like in INET framework. These hosts never
// behaves as attacker host. The only differente regards AdhocHost is that in
// this case they are using the MA framework arquitecture.
//
// @see AdhocHost, WirelessHost
//
// @author Gabriel Maciá Fernández, gmacia@ugr.es
// @date 01/22/2013

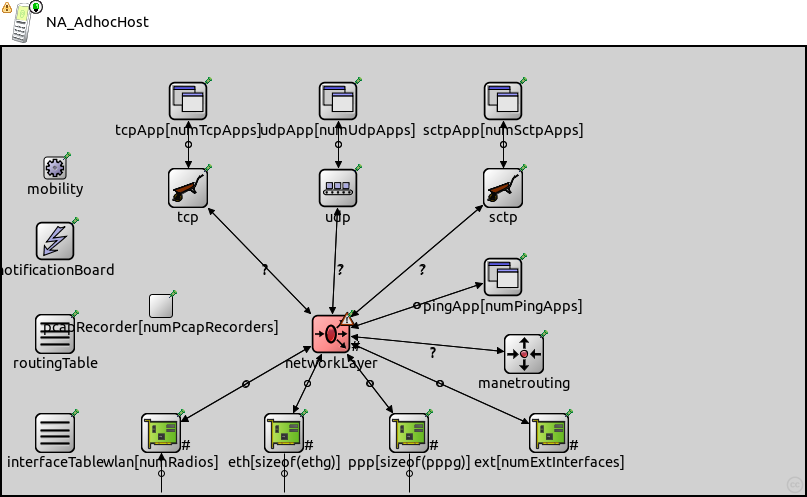

module NA_AdhocHost extends NA_WirelessHost
{
    parameters:
        @display("i=device/cellphone,white;bgb=803,448;i2=status/green");
        wlan[*].mgmtType = default("Ieee80211MgmtAdhoc");  // use adhoc management
        string routingProtocol @enum("AODVUU","DYMOUM","DYMO","DSRUU","OLSR","OLSR_ETX","DSDV_2","Batman") = default("AODVUU");
        IPForward = default(true);

    submodules:
        manetrouting: <routingProtocol> like IManetRouting if routingProtocol != "" {
            @display("p=522,307");
        }
    connections:
        networkLayer.manetOut --> manetrouting.from_ip if routingProtocol != "";
        networkLayer.manetIn <-- manetrouting.to_ip if routingProtocol != "";

}
