Compound Module NA_StandardHost

Generic standard host. Modificated from StandarHost module. Migrated from INET for inheritance requirements of NA_AttackerAdhocHost and NA_AttackerWirelessHost

See also: StandarHost, NodeBase

Author: Gabriel Maciá Fernández, gmacia@ugr.es

Date: 01/22/2013

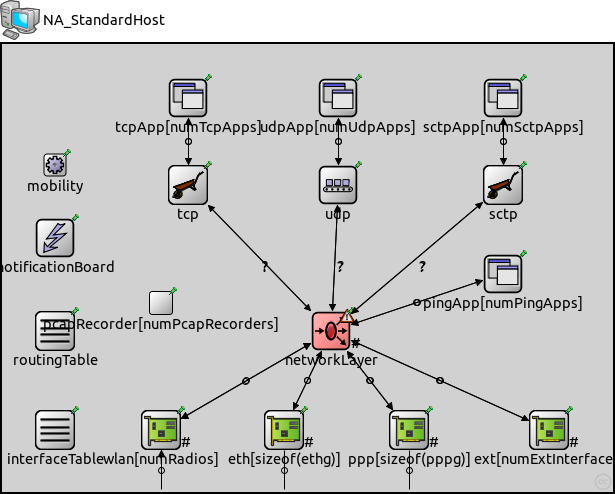

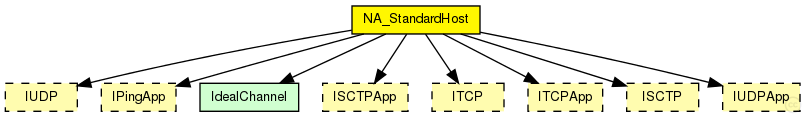

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

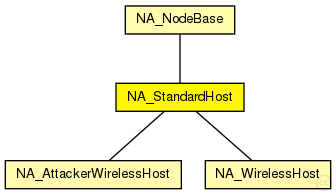

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Extends:

Known subclasses:

Parameters:

Properties:

Gates:

Unassigned submodule parameters:

Source code:

//
// Generic standard host. Modificated from StandarHost module.
// Migrated from INET for inheritance requirements
// of NA_AttackerAdhocHost and NA_AttackerWirelessHost
//
// @see StandarHost, NodeBase
//
// @author Gabriel Maciá Fernández, gmacia@ugr.es
// @date 01/22/2013
module NA_StandardHost extends NA_NodeBase
{
    parameters:
        @display("i=device/pc2");
        int numTcpApps = default(0);  // no of TCP apps. Specify the app types in INI file with tcpApp[0..1].typename="TCPEchoApp" syntax
        int numUdpApps = default(0);  // no of UDP apps. Specify the app types in INI file with udpApp[0..1].typename="UDPVideoStreamCli" syntax
        int numSctpApps = default(0); // no of SCTP apps. Specify the app types in INI file with sctpApp[0..1].typename="SCTPServer" syntax
        int numPingApps = default(0);  // no of PING apps. Specify the app types in INI file with pingApp[0..1].typename="PingApp" syntax
        string tcpType = default(firstAvailable("TCP", "TCP_lwIP", "TCP_NSC", "TCP_None"));  // tcp implementation (e.g. ~TCP, ~TCP_lwIP, ~TCP_NSC) or ~TCPSpoof
        string udpType = default(firstAvailable("UDP","UDP_None"));
        string sctpType = default(firstAvailable("SCTP","SCTP_None"));
        IPForward = default(false);  // disable routing by default
        networkLayer.proxyARP = default(false);
    submodules:
        tcpApp[numTcpApps]: <> like ITCPApp {
            parameters:
                @display("p=186,54,row");
        }
        tcp: <tcpType> like ITCP if numTcpApps>0 {
            parameters:
                @display("p=186,141");
        }
        udpApp[numUdpApps]: <> like IUDPApp {
            parameters:
                @display("p=336,54,row");
        }
        udp: <udpType> like IUDP if numUdpApps>0 {
            parameters:
                @display("p=336,141");
        }
        sctpApp[numSctpApps]: <> like ISCTPApp {
            parameters:
                @display("p=501,54,row");
        }
        sctp: <sctpType> like ISCTP if numSctpApps>0 {
            @display("p=501,141");
        }
        pingApp[numPingApps]: <default("PingApp")> like IPingApp {
            parameters:
                @display("p=501,230");
        }
    connections allowunconnected:
        for i=0..numTcpApps-1 {
            tcpApp[i].tcpOut --> tcp.appIn++;
            tcpApp[i].tcpIn <-- tcp.appOut++;
        }

        tcp.ipOut --> networkLayer.tcpIn if numTcpApps>0;
        tcp.ipIn <-- networkLayer.tcpOut if numTcpApps>0;

        for i=0..numUdpApps-1 {
            udpApp[i].udpOut --> udp.appIn++;
            udpApp[i].udpIn <-- udp.appOut++;
        }

        udp.ipOut --> networkLayer.udpIn if numUdpApps>0;
        udp.ipIn <-- networkLayer.udpOut if numUdpApps>0;

        for i=0..numSctpApps-1 {
            sctpApp[i].sctpOut --> sctp.from_appl++;
            sctp.to_appl++ --> sctpApp[i].sctpIn;
        }
        sctp.to_ip --> networkLayer.sctpIn if numSctpApps>0;
        networkLayer.sctpOut --> sctp.from_ip if numSctpApps>0;

        for i=0..numPingApps-1 {
            networkLayer.pingOut++ --> pingApp[i].pingIn;
            networkLayer.pingIn++ <-- pingApp[i].pingOut;
        }
}
