Compound Module NA_NodeBase

Compound module allowing hacked modules. Modificated from NodeBase module.

Allowed hacked modules:

• NA_NetworkLayer

See also: NA_NetworkLayer, NodeBase

Author: Gabriel Maciá Fernández, gmacia@ugr.es

Date: 01/22/2013

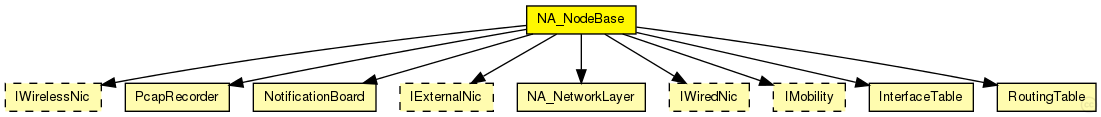

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Known subclasses:

Parameters:

Properties:

Gates:

Unassigned submodule parameters:

Source code:

//
// Compound module allowing hacked modules. Modificated from NodeBase module.
//
// Allowed hacked modules:
// - NA_NetworkLayer
//
// @see NA_NetworkLayer, NodeBase
//
// @author Gabriel Maciá Fernández, gmacia@ugr.es
// @date 01/22/2013
module NA_NodeBase
{
    parameters:
        @display("bgb=611,448");
        @node;
        @labels(node,ethernet-node,wireless-node);
        int numExtInterfaces = default(0);
        int numRadios = default(0);               // the number of radios in the router. by default no wireless
        int numPcapRecorders = default(0); // no of PcapRecorders.
        string mobilityType = default("StationaryMobility");
        string routingFile = default("");
        bool IPForward = default(true);
    gates:
        input radioIn[numRadios] @directIn;
        inout pppg[] @labels(PPPFrame-conn);
        inout ethg[] @labels(EtherFrame-conn);
    submodules:
        notificationBoard: NotificationBoard {
            parameters:
                @display("p=53,194");
        }

        // optional mobility module. Required only if wireless cards are present
        mobility: <mobilityType> like IMobility if mobilityType != "" && numRadios > 0 {
            parameters:
                @display("p=53,121");
        }

        //# Hacked module replacing the normal NetworkLayer INET module for attack purposes.
        networkLayer: NA_NetworkLayer {
            parameters:
                @display("p=329,287;q=queue");
        }

        routingTable: RoutingTable {
            parameters:
                @display("p=53,287");
                IPForward = IPForward;
                routingFile = routingFile;
        }

        // linklayer
        interfaceTable: InterfaceTable {
            parameters:
                @display("p=53,386");
        }

        pcapRecorder[numPcapRecorders]: PcapRecorder {
            @display("p=159,259");
        }

        wlan[numRadios]: <default("Ieee80211Nic")> like IWirelessNic {
            parameters:
                @display("p=159,386;q=queue");
        }
        eth[sizeof(ethg)]: <default("EthernetInterface")> like IWiredNic {
            parameters:
                @display("p=282,386,row,90;q=txQueue");
        }
        ppp[sizeof(pppg)]: <default("PPPInterface")> like IWiredNic {
            parameters:
                @display("p=407,386,row,90;q=txQueue");
        }
        ext[numExtInterfaces]: <default("ExtInterface")> like IExternalNic {
            parameters:
                @display("p=547,386,row,90;q=txQueue;i=block/ifcard");
        }

    connections allowunconnected:
        // connections to network outside
        for i=0..sizeof(radioIn)-1 {
            radioIn[i] --> wlan[i].radioIn;
            wlan[i].upperLayerOut --> networkLayer.ifIn++;
            wlan[i].upperLayerIn <-- networkLayer.ifOut++;
        }

        for i=0..sizeof(ethg)-1 {
            ethg[i] <--> eth[i].phys;
            eth[i].upperLayerOut --> networkLayer.ifIn++;
            eth[i].upperLayerIn <-- networkLayer.ifOut++;
        }

        for i=0..sizeof(pppg)-1 {
            pppg[i] <--> ppp[i].phys;
            ppp[i].upperLayerOut --> networkLayer.ifIn++;
            ppp[i].upperLayerIn <-- networkLayer.ifOut++;
        }

        for i=0..numExtInterfaces-1 {
            ext[i].upperLayerOut --> networkLayer.ifIn++;
            ext[i].upperLayerIn <-- networkLayer.ifOut++;
        }
}
